66580-2 | AMP

Receptacle, 0.8-1.4 mm², AWG 18-16, crimp connection, 66580-2

Order No.: 39P2696
EAN: 4099889654196
MPN:
66580-2
Series: Multimate

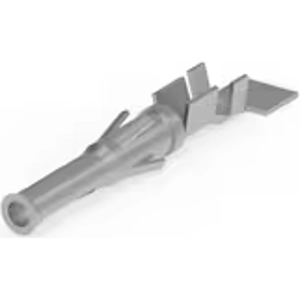

66580-2 AMP Crimp Contacts
Image may differ
Unit Price (€ / pc.)
0.2904 € *
Available in 5 Days: 255,436 pcs. - if ordered today
Total Price:
1,451.80 € *
*incl. VAT plus shipping costs
Subject to prior sale
5000 pcs.
0.2904 €

Power contact, 66580-2, AMP

Power contact Type: Contact, Connector System: Wire-to-Wire, Sealable: No, Connector & Contact Terminates To: Wire & Cable, Number of Positions: 1, Test Current: 13 A, Operating Voltage: 250 VAC, Operating Voltage: 250 VDC, Contact Mating Area Plating Material: Tin, Contact Current Rating (Max): 1.8 A, Contact Type: Socket, Contact Retention Within Housing: With, Mating Pin Diameter: 1.57 mm, Termination Method to Wire & Cable: Crimp, Connector Mounting Type: Panel Mount, Wire Insulation Support: With, Wire Size: 18 - 16 AWG, Wire Size: 0.8 - 1.4 mm², Accepts Wire Insulation Diameter Range: 2.03 - 2.54 mm, Operating Temperature Range: -55 - 90 °C.

Technical specifications
Filter Property Value
Version receptacle
Contact material brass
Contact connection crimp connection
AWG cross-section AWG 18-16
Insulation diameter 2.03-2.54 mm
Cable cross-section 0.8-1.4 mm²
Contact surface mating area tin-plated
Contact surface Connection range tin-plated
Logistics
Property Value
Customs tariff number 85366990
Country of origin IN
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
