66569-3 | AMP

Receptacle, 0.8-0.9 mm², AWG 18-16, solder connection, gold-plated, 66569-3

Order No.: 55F418
EAN: 4099889660852
MPN:
66569-3
0-0066569-3
Series: AMPLIMITE

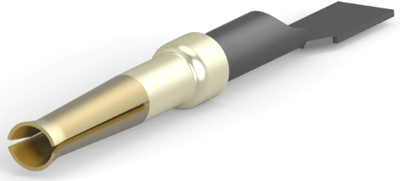

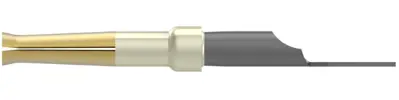

66569-3 AMP Crimp Contacts Image 1
66569-3 AMP Crimp Contacts Image 2
66569-3 AMP Crimp Contacts Image 3
66569-3 AMP Crimp Contacts Image 4
66569-3 AMP Crimp Contacts Image 5
Image may differ
Unit Price (€ / pc.)
0.4998 € *
Available: 9 pcs.
Available in 5 Days: 127,258 pcs. - if ordered today
Total Price:
2.50 € *
Price list
Quantity
Price per unit*
5 pcs.
0.4998 €
10 pcs.
0.4641 €
25 pcs.
0.4284 €
50 pcs.
0.3927 €
*incl. VAT plus shipping costs
Subject to prior sale

Corresponding female solder contact, type 0-0066569-3.

Made of tin bronze, nickel-plated and selective gold-plated, for conductors up to max. 0.9 mm².

Technical attributes (type, number of poles, dimensions A, C, D): 0-0066569-3, female contact

Technical specifications
Filter Property Value
Contact surface mating area gold-plated
AWG cross-section AWG 18-16
contact surface gold-plated
Version receptacle
Contact connection solder connection
Cable cross-section 0.8-0.9 mm²
Insulation diameter 2.16 mm
Contact material phosphor bronze
Logistics
Property Value
Country of origin IN
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
