66504-9 | AMP
Receptacle, 0.2-0.6 mm², AWG 24-20, crimp connection, 66504-9
Unit Price (€ / pc.)
0.2904 € *
Available in 5 Days: 56,524 pcs. - if ordered today
Total Price:
1.45 € *
Price list
Quantity
Price per unit*
5 pcs.
0.2904 €
10 pcs.
0.2689 €
25 pcs.
0.2499 €
50 pcs.
0.2273 €
*incl. VAT plus shipping costs
Subject to prior sale

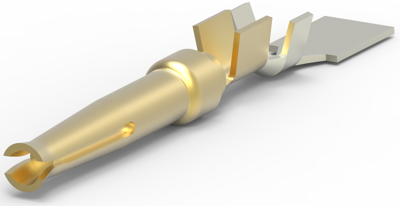

Socket contact, 66504-9, AMP
Connector System: Cable-to-Cable, Connector & Contact Terminates To: Wire & Cable, Contact Type: Socket, D-Sub Contact Size: 20, Contact Base Material: Copper Tin Alloy, Contact Mating Area Plating Material: Gold, Contact Current Rating (Max): 2 A, Termination Method to Wire & Cable: Crimp, Wire Size: 24 - 20 AWG, Wire Size: 0.2 - 0.6 mm², Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact surface mating area | gold-plated | |
| AWG cross-section | AWG 24-20 | |
| Version | receptacle | |
| Contact connection | crimp connection | |
| Cable cross-section | 0.2-0.6 mm² | |
| Insulation diameter | 1.27-1.52 mm | |
| Contact material | phosphor bronze |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TH |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
