66504-4 | AMP
Receptacle, 0.2-0.6 mm², AWG 24-20, crimp connection, gold-plated, 66504-4
Unit Price (€ / pc.)
0.0976 € *
Available: 0 pcs.
Available in 5 Days: 80,000 pcs.
Leadtime: 13 Weeks **
Total Price:
975.80 € *
Price list
Quantity
Price per unit*
10000 pcs.
0.0976 €
20000 pcs.
0.0952 €
*incl. VAT plus shipping costs
**Subject to prior sale

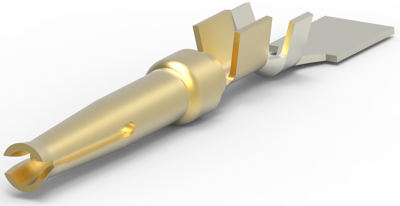

D-Sub connector contact, 66504-4, AMP
Grade: Standard, Connector System: Cable-to-Cable, Connector & Contact Terminates To: Wire & Cable, Color Code: Red, Pin Diameter: , Contact Type: Socket, D-Sub Contact Size: 20, Contact Base Material: Phosphor Bronze, Contact Mating Area Plating Material: Gold Flash, Termination Method to Wire & Cable: Crimp, Wire Insulation Support: With, Accepts Wire Insulation Diameter Range: 1.27 - 1.52 mm, Wire Size: 24 - 20 AWG, Wire Size: 0.2 - 0.6 mm², Operating Temperature Range: -55 - 105 °C, For Use With: AMPLIMITE HDP-20,CPC Connectors.
Technical specifications
| Version | Buchsenkontakt | |
| AWG cross-section | AWG 24-20 | |
| Insulation diameter | 1,27-1,52 mm | |
| Contact connection | Crimpanschluss | |
| Contact material | Phosphorbronze | |
| Contact surface mating area | vergoldet | |
| contact surface | vergoldet | |
| Cable cross-section | 0,2-0,6 mm² |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
