66359-9 | AMP

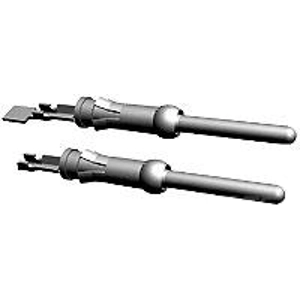

Pin contact, 0.8-2.0 mm², AWG 18-14, crimp connection, 66359-9
Unit Price (€ / pc.)
0.5474 € *
Available: 0 pcs.
Available in 5 Days: 8,000 pcs.
Leadtime: 1 Week **
Power contact, 66359-9, TE Connectivity
Power contact Type: Contact, Connector & Contact Terminates To: Wire & Cable, Test Current: 13 A, Contact Mating Area Plating Material: Gold, Contact Current Rating (Max): 13 A, Contact Type: Pin, Contact Retention Within Housing: With, Mating Pin Diameter: 1.57 mm, Termination Method to Wire & Cable: Crimp, Wire Insulation Support: With, Wire Size: 18 - 14 AWG, Wire Size: 0.8 - 2 mm², Accepts Wire Insulation Diameter Range: 2.03 - 2.54 mm, Operating Temperature Range: -55 - 150 °C, Circuit Application: Power & Signal, Packaging Method: Reel, Packaging Quantity: 4000, For Use With: CPC Connectors, G Series Connectors, M Series Connectors, Comment: Overall insulation crimp diameter, including crimp barrel, must not exceed 3.18 .125.
Technical specifications
| Version | pin contact | |
| AWG cross-section | AWG 18-14 | |
| Insulation diameter | 2.03-2.54 mm | |
| Contact connection | crimp connection | |
| Contact material | brass | |
| Contact surface Connection range | tin-plated | |
| Contact surface mating area | gold-plated | |
| Cable cross-section | 0.8-2.0 mm² |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
