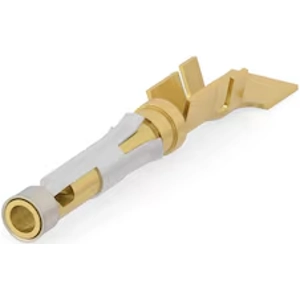

66183-1 | AMP
Receptacle, 0.12-0.5 mm², AWG 26-20, solder connection, 66183-1
Unit Price (€ / pc.)
1.4161 € *
Available in 5 Days: 5,408 pcs. - if ordered today
Power contact, 66183-1, AMP
Power contact Type: Contact, Connector & Contact Terminates To: Wire & Cable, Test Current: 13 A, Contact Mating Area Plating Material: Gold, Contact Current Rating (Max): 13 A, Contact Type: Socket, Contact Retention Within Housing: With, Mating Pin Diameter: 1.57 mm, Termination Method to Wire & Cable: Solder, Wire Insulation Support: With, Wire Size: 26 - 20 AWG, Wire Size: 0.12 - 0.5 mm², Operating Temperature Range: -55 - 150 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact surface mating area | gold-plated | |
| AWG cross-section | AWG 26-20 | |
| Contact connection | solder connection | |
| Contact surface Connection range | gold-plated | |
| Contact material | brass | |
| Cable cross-section | 0.12-0.5 mm² | |
| Version | receptacle |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
