647879-1 | AMP

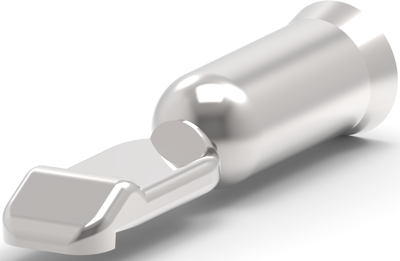

Tab, 3.08-6.11 mm², AWG 12-10, crimp connection, 647879-1
Unit Price (€ / pc.)
1.1186 € *
Available: 10 pcs.
Total Price:
5.59 € *
Price list
Quantity
Price per unit*
5 pcs.
1.1186 €
10 pcs.
1.0353 €
25 pcs.
0.9639 €
50 pcs.
0.8687 €
*incl. VAT plus shipping costs
Subject to prior sale
Power contact, 647879-1, TE Connectivity
Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 600 VAC, Operating Voltage: 600 VDC, Contact Mating Area Plating Material: Silver, Contact Current Rating (Max): 50 A, Contact Type: Tab, Contact Retention Within Housing: With, Mating Tab Width: 7.11 mm, Termination Method to Wire & Cable: Crimp, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Size: 12 - 10 AWG, Wire Size: 3.085 - 6.114 mm², Wire Size: 6088 - 12066 CMA, Operating Temperature Range: -40 - 105 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact surface mating area | silver-plated | |
| AWG cross-section | AWG 12-10 | |
| Version | tab | |
| Contact connection | crimp connection | |
| Contact surface Connection range | silver-plated | |
| Cable cross-section | 3.08-6.11 mm² | |
| Contact material | copper alloy |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
