641300-1 | AMP

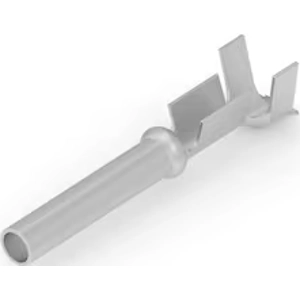

Receptacle, 0.12-0.8 mm², AWG 26-18, crimp connection, 641300-1
Order No.: 39P2304
EAN: 4099889652277
MPN:
641300-1
Unit Price (€ / pc.)
0.7021 € *
Available: 0 pcs.
Available in 5 Days: 11,116 pcs.
Leadtime: 29 Weeks **
Total Price:
0.70 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7021 €
10 pcs.
0.6188 €
50 pcs.
0.5593 €
100 pcs.
0.4879 €
*incl. VAT plus shipping costs
**Subject to prior sale
Power contact, 641300-1, TE Connectivity
Power contact Type: Contact, Connector System: Wire-to-Board,Wire-to-Wire, Sealable: No, Connector & Contact Terminates To: Wire & Cable, Number of Positions: 1, Operating Voltage: 250 VAC, Operating Voltage: 250 VDC, Contact Fabrication: Stamped & Formed, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 9 A, Contact Type: Socket, Contact Retention Within Housing: With, Termination Method to Wire & Cable: Crimp, Wire Insulation Support: With, Wire Size: 26 - 18 AWG, Wire Size: 0.12 -0.8 mm², Wire Size: 236.823 - 1578.82 CMA, Accepts Wire Insulation Diameter Range: 0.635 - 2.92 mm, Operating Temperature Range: -55 - 85 °C.
Technical specifications
| Contact surface mating area | tin-plated | |
| AWG cross-section | AWG 26-18 | |
| Contact surface Connection range | tin-plated | |
| Contact connection | crimp connection | |
| Cable cross-section | 0.12-0.8 mm² | |
| Version | receptacle | |
| Contact material | phosphor bronze | |
| Insulation diameter | 0.64-2.92 mm |
Download
Logistics
| Country of origin | IL |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
