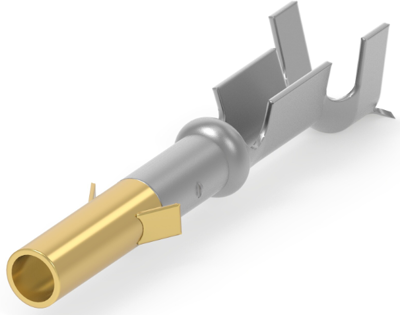

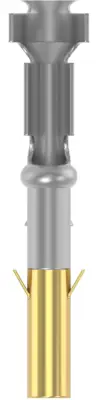

641294-2 | AMP
Receptacle, 0.12-0.8 mm², AWG 26-18, crimp connection, 641294-2
Order No.: 39P2321
EAN: 4099889652369
MPN:
641294-2
Unit Price (€ / pc.)
0.7259 € *
Available: 0 pcs.
Leadtime: 22 Weeks **
Power contact, 641294-2, TE Connectivity
Power contact Type: Contact, Connector System: Wire-to-Board,Wire-to-Wire, Sealable: No, Connector & Contact Terminates To: Wire & Cable, Number of Positions: 1, Operating Voltage: 250 VAC, Operating Voltage: 250 VDC, Contact Fabrication: Stamped & Formed, Contact Mating Area Plating Material: Gold, Contact Current Rating (Max): 9 A, Contact Type: Socket, Contact Retention Within Housing: With, Termination Method to Wire & Cable: Crimp, Wire Insulation Support: With, Wire Size: 26 - 18 AWG, Wire Size: 0.12 -0.8 mm², Wire Size: 236.823 - 1578.82 CMA, Accepts Wire Insulation Diameter Range: 0.635 - 2.92 mm, Operating Temperature Range: -55 - 85 °C.
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 26-18 | |
| Insulation diameter | 0.64-2.92 mm | |
| Contact connection | crimp connection | |
| Contact material | phosphor bronze | |
| Contact surface Connection range | nickel-plated | |
| Contact surface mating area | gold-plated | |
| Cable cross-section | 0.12-0.8 mm² |
Download
Logistics
| Country of origin | IL |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
