640632-3 | AMP

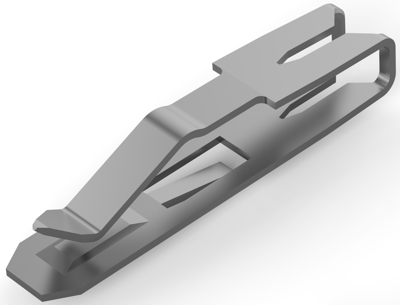

Receptacle, 0.5-0.6 mm², AWG 20, IDC connection, 640632-3
Order No.: 35P1448
EAN: 4099889636680
MPN:
640632-3
Unit Price (€ / pc.)
0.2713 € *
Standard delivery time from the manufacturer is: 21 Weeks
Total Price:
1.36 € *
Price list
Quantity
Price per unit*
5 pcs.
0.2713 €
10 pcs.
0.2511 €
25 pcs.
0.2344 €
50 pcs.
0.2118 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket contact, 640632-3, AMP
Power Contact Type: Contact, Connector System: Wire-to-Board, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 600 VAC, Insulation Resistance: 5000, Contact Mating Area Plating Material: Tin, Contact Current Rating (Max): 14.24 A, Contact Type: Receptacle, Contact Retention Within Housing: With, Mating Square Post Dimension: 1.14 mm, Termination Method to Wire & Cable: Crimp/IDC, Contact Retention Type Within Housing: Locking Lance, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 20 AWG, Wire Size: 0.5 - 0.6 mm², Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact surface mating area | tin-plated | |
| AWG cross-section | AWG 20 | |
| Version | receptacle | |
| Contact connection | IDC connection | |
| Contact surface Connection range | tin-plated | |
| Cable cross-section | 0.5-0.6 mm² | |
| Contact material | copper alloy |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TH |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
