640631-3 | AMP

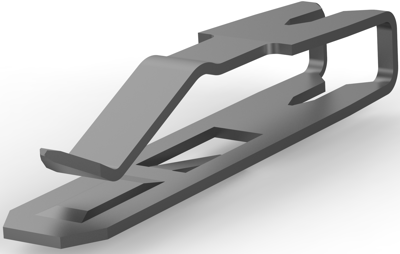

Receptacle, 0.8-0.9 mm², AWG 18, IDC connection, 640631-3
Unit Price (€ / pc.)
0.1499 € *
Available: 0 pcs.
Leadtime: 23 Weeks **
Power contact, 640631-3, AMP
Power contact Type: Contact, Connector System: Wire-to-Board, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 600 VAC, Insulation Resistance: 5000, Contact Mating Area Plating Material: Tin, Contact Current Rating (Max): 14.24 A, Contact Type: Receptacle, Contact Retention Within Housing: With, Mating Square Post Dimension: 1.14 mm, Termination Method to Wire & Cable: Crimp/IDC, Contact Retention Type Within Housing: Locking Lance, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 18 AWG, Wire Size: 0.8 - 0.9 mm², Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 18 | |
| Contact connection | IDC connection | |
| Contact material | copper alloy | |
| Contact surface Connection range | tin-plated | |
| Contact surface mating area | tin-plated | |
| Cable cross-section | 0.8-0.9 mm² |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85389091 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
