638112-3 | AMP

Pin contact, 0.8-2.0 mm², AWG 18-14, crimp connection, tin-plated, 638112-3

Order No.: 36P3952
EAN: 4099889647051
MPN:
638112-3
Series: AMPSEAL

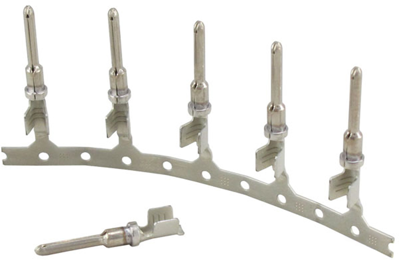

638112-3 AMP Crimp Contacts
Image may differ
Unit Price (€ / pc.)
0.2380 € *
Available in 5 Days: 12,000 pcs. - if ordered today
Total Price:
3,808.00 € *
*incl. VAT plus shipping costs
Subject to prior sale
16000 pcs.
0.2380 €

Contacts for motor vehicles, 638112-3, TE Connectivity

Sealable: No, Automotive terminal Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Pin, Mating Pin Diameter: 1.59 mm, Automotive terminal Interface Plating: Nickel (Ni), Contact Termination Area Plating Material: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 18 - 14 AWG, Wire Size: 0.8 - 2 mm², Wire Size Search: 0.8 mm², 0.85 mm², 1 mm², 1.25 mm², 1.3 mm², 1.5 mm², 2 mm², Wire Size Search: 14 AWG, 15 AWG, 16 AWG, 17 AWG, 18 AWG, Operating Temperature Range: -40 - 120 °C.

Technical specifications
contact surface tin-plated
AWG cross-section AWG 18-14
Contact surface Connection range tin-plated
Contact connection crimp connection
Cable cross-section 0.8-2.0 mm²
Version pin contact
Contact material copper alloy
Logistics
Country of origin TW
Customs tariff number 85369040
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
