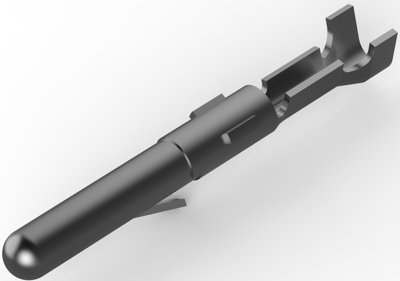

61174-1 | AMP
Pin contact, 0.05-0.33 mm², AWG 30-22, crimp connection, 61174-1
Unit Price (€ / pc.)
0.2523 € *
Available in 5 Days: 174,788 pcs. - if ordered today
Total Price:
1.26 € *
Price list
Quantity
Price per unit*
5 pcs.
0.2523 €
10 pcs.
0.2332 €
25 pcs.
0.2178 €
50 pcs.
0.1975 €
*incl. VAT plus shipping costs
Subject to prior sale
Power contact, 61174-1, AMP
Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Test Current: 3 A, Operating Voltage: 250 VAC, Contact Shape & Form: Round, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 15 A, Contact Type: Pin, Contact Retention Within Housing: With, Termination Method to Wire & Cable: Crimp, Contact Retention Type Within Housing: Locking Lance, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 30 - 22 AWG, Wire Size: 0.05 - 0.33 mm², Accepts Wire Insulation Diameter Range: 1.02 - 1.91 mm, Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact surface mating area | tin-plated | |
| AWG cross-section | AWG 30-22 | |
| Version | pin contact | |
| Contact connection | crimp connection | |
| Contact surface Connection range | tin-plated | |
| Cable cross-section | 0.05-0.33 mm² | |
| Insulation diameter | 1.02-1.91 mm | |
| Contact material | brass |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
