60620-5 | AMP

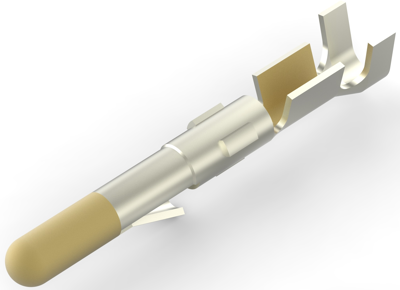

Pin contact, 0.52-2.08 mm², AWG 20-14, crimp connection, 60620-5
Unit Price (€ / pc.)
1.9992 € *
Available in 5 Days: 30,303 pcs. - if ordered today
Total Price:
10.00 € *
Price list
Quantity
Price per unit*
5 pcs.
1.9992 €
10 pcs.
1.8564 €
25 pcs.
1.7255 €
50 pcs.
1.5589 €
*incl. VAT plus shipping costs
Subject to prior sale
Power contact, 60620-5, TE Connectivity
Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 250 VAC, Operating Voltage: 250 VDC, Insulation Resistance: 500, Contact Shape & Form: Round, Contact Mating Area Plating Material: Gold, Contact Current Rating (Max): 15 A, Contact Type: Pin, Contact Retention Within Housing: With, Termination Method to Wire & Cable: Crimp, Contact Retention Type Within Housing: Locking Lance, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 20 - 14 AWG, Wire Size: 0.52 - 2.08 mm², Accepts Wire Insulation Diameter Range: 3.3 mm, Overall Length: 20.5 mm, Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact material | brass | |
| Contact surface mating area | gold-plated | |
| Cable cross-section | 0.52-2.08 mm² | |
| Version | pin contact | |
| AWG cross-section | AWG 20-14 | |
| Contact surface Connection range | gold-plated | |
| Contact connection | crimp connection | |
| Insulation diameter | 3.3 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
