5-867052-1 | AMP

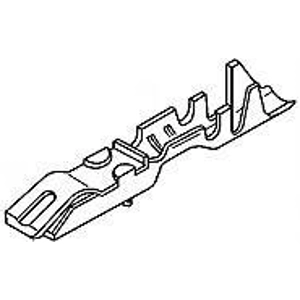

Plug-in socket, 0.5 mm², AWG 20, crimp connection, 5-867052-1
Unit Price (€ / pc.)
0.5831 € *
Standard delivery time from the manufacturer is: 21 Weeks
Wire-to-board connector contact, 5-867052-1, AMP
Connector System: Wire-to-Board, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 250 VAC, Contact Base Material: Phosphor Bronze, Contact Type: Socket, Contact Mating Area Plating Material: Tin, Contact Current Rating (Max): 3 A, Termination Method to Wire & Cable: Crimp, Wire Insulation Support: With, Accepts Wire Insulation Diameter Range: 0.97 - 1.57 mm, Wire Size: 20 AWG, Wire Size: 1021 CMA, Wire Size: 0.5 mm², Operating Temperature Range: -65 - 105 °C.
Technical specifications
| Contact surface mating area | tin-plated | |
| AWG cross-section | AWG 20 | |
| Contact surface Connection range | tin-plated | |
| Contact connection | crimp connection | |
| Cable cross-section | 0.5 mm² | |
| Version | plug-in socket | |
| Contact material | phosphor bronze | |
| Insulation diameter | 0.97-1.57 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | No |
