5-745287-4 | AMP

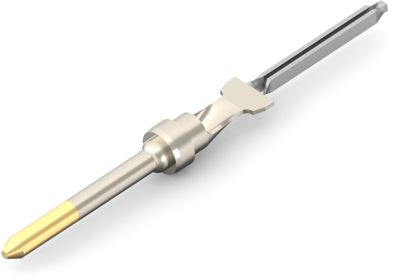

Pin contact, AWG 16-14, solder connection, gold-plated, 5-745287-4
Order No.: 36P9312
EAN: 4099889648270
MPN:
5-745287-4
Unit Price (€ / pc.)
0.5712 € *
Available in 5 Days: 125,465 pcs. - if ordered today
Total Price:
2.86 € *
Price list
Quantity
Price per unit*
5 pcs.
0.5712 €
10 pcs.
0.5236 €
25 pcs.
0.4879 €
50 pcs.
0.4403 €
*incl. VAT plus shipping costs
Subject to prior sale
Pin contact, 5-745287-4, TE Connectivity
Grade: Standard, Connector System: Cable-to-Board, Connector & Contact Terminates To: Printed Circuit Board, Post Size: 0.64 mm, PCB Contact Termination Area Plating Material: Tin, Contact Type: Pin, D-Sub Contact Size: 20, Contact Base Material: Brass, Contact Mating Area Plating Material: Gold, Termination Post Length: 4.78 mm, Termination Method to Wire & Cable: Solder, Wire Insulation Support: Without, Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 16-14 | |
| contact surface | gold-plated | |
| Version | pin contact | |
| Contact connection | solder connection | |
| Contact material | brass |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
