5-166054-1 | AMP

Pin contact, 0.08-0.22 mm², AWG 28-24, crimp connection, gold-plated, 5-166054-1

Order No.: 55F4076
EAN: 4099889660777
MPN:
5-166054-1
5-0166054-1
Series: AMPLIMITE

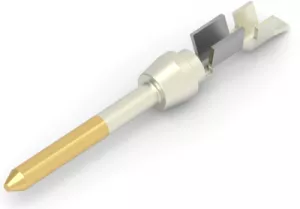

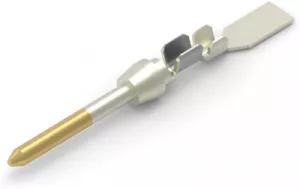

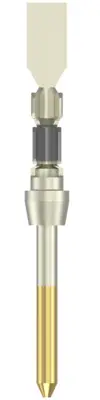

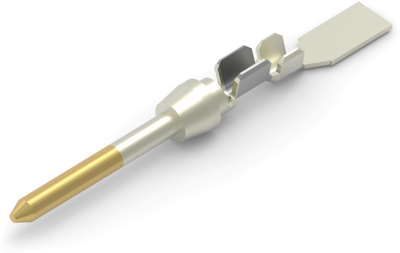

5-166054-1 AMP Crimp Contacts Image 1
5-166054-1 AMP Crimp Contacts Image 2
5-166054-1 AMP Crimp Contacts Image 3
5-166054-1 AMP Crimp Contacts Image 4
5-166054-1 AMP Crimp Contacts Image 5
Image may differ
Unit Price (€ / pc.)
0.6188 € *
Available: 14,000 pcs.
Available in 5 Days: 10,000 pcs. - if ordered today
Total Price:
3.09 € *
Price list
Quantity
Price per unit*
5 pcs.
0.6188 €
10 pcs.
0.5712 €
25 pcs.
0.5236 €
50 pcs.
0.4760 €
*incl. VAT plus shipping costs
Subject to prior sale

Corresponding crimp contact, male, taped on 500-piece reels, type 5-0166.

Made of brass, nickel-plated and selective gold plating.

Technical attributes (type, for conductor cross-section): 5-0166054-1, 0.08 to 0.22 mm²

Technical specifications
Filter Property Value
Contact surface mating area gold-plated
AWG cross-section AWG 28-24
contact surface gold-plated
Version pin contact
Contact connection crimp connection
Cable cross-section 0.08-0.22 mm²
Insulation diameter 0.76-1.02 mm
Contact material brass
Logistics
Property Value
Country of origin PL
Customs tariff number 85366990
Original Packaging Reel with 500 pieces
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
