5-166052-1 | AMP
Receptacle, 0.08-0.22 mm², AWG 28-24, crimp connection, gold-plated, 5-166052-1
Order No.: 55F4176
EAN: 4099889660845
MPN:
5-166052-1
5-0166052-1
Unit Price (€ / pc.)
1.0829 € *
Available in 5 Days: 8,000 pcs. - if ordered today
Total Price:
1.08 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0829 €
10 pcs.
0.9758 €
50 pcs.
0.8806 €
100 pcs.
0.7854 €
*incl. VAT plus shipping costs
Subject to prior sale

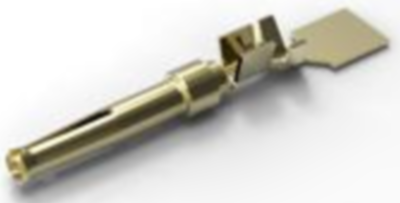

Corresponding crimp contact, female, taped on 500-piece reels, type 5-0166.
Made of copper alloy, nickel-plated with selective gold plating.
Technical attributes (type, for conductor cross-section): 5-0166052-1, 0.08 to 0.22 mm²
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact surface mating area | gold-plated | |
| contact surface | gold-plated | |
| AWG cross-section | AWG 28-24 | |
| Contact connection | crimp connection | |
| Cable cross-section | 0.08-0.22 mm² | |
| Version | receptacle | |
| Contact material | phosphor bronze | |
| Insulation diameter | 0.76-1.02 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85366990 |
| Original Packaging | Reel with 500 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
