5-104505-7 | AMP

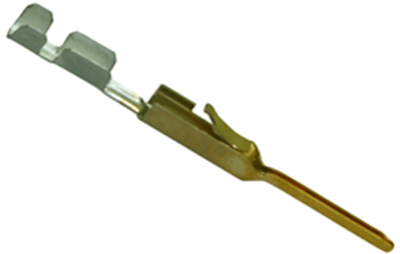

Pin contact, 0.12-0.4 mm², AWG 26-22, crimp connection, gold-plated, 5-104505-7
Unit Price (€ / pc.)
0.4046 € *
Available: 4,843 pcs.
Total Price:
0.81 € *
Price list
Quantity
Price per unit*
2 pcs.
0.4046 €
10 pcs.
0.3689 €
50 pcs.
0.3570 €
100 pcs.
0.3332 €
*incl. VAT plus shipping costs
Subject to prior sale
Corresponding male and female crimp contact, type 5-0104./0-0166.
Made of copper alloy; surface: selective gold-plating, conductor cross-sections 0.14 to 0.32 mm² (AWG 26/22).
Type: 5-0104505-7, male contact
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin contact | |
| Cable cross-section | 0.12-0.4 mm² | |
| AWG cross-section | AWG 26-22 | |
| Contact connection | crimp connection | |
| Contact material | phosphor bronze | |
| Contact surface mating area | gold-plated | |
| contact surface | gold-plated | |
| Contact surface Connection range | gold-plated | |
| Insulation diameter | 0.91-1.37 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
