5-104481-6 | AMP

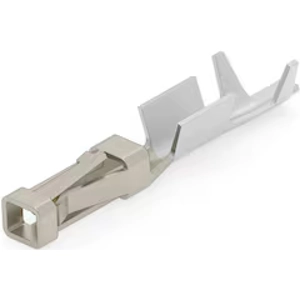

Receptacle, 0.03-0.09 mm², AWG 32-28, crimp connection, 5-104481-6
Unit Price (€ / pc.)
0.3570 € *
Available: 0 pcs.
Available in 5 Days: 31,900 pcs.
Leadtime: 30 Weeks **
Total Price:
0.36 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3570 €
50 pcs.
0.3094 €
100 pcs.
0.2761 €
500 pcs.
0.2344 €
*incl. VAT plus shipping costs
**Subject to prior sale
Socket contact, 5-104481-6, TE Connectivity
Applied Pressure: Standard, Connector System: Wire-to-Board, Connector & Contact Terminates To: Wire & Cable, Compatible With Wire & Cable Type: Discrete Wire, Operating Voltage: 300 VAC, Contact Base Material: Copper Alloy C7025, Contact Type: Socket, Contact Mating Area Plating Material: Tin, Contact Current Rating (Max): 3 A, Termination Method to Wire & Cable: Crimp, Wire Insulation Support: With, Accepts Wire Insulation Diameter Range: 0.64 - 1.52 mm, Wire Size: 32 - 28 AWG, Wire Size: 59.2 - 177.62 CMA, Wire Size: 0.03 -0.09 mm², Operating Temperature Range: -65 - 105 °C.
Technical specifications
| Version | Buchsenkontakt | |
| AWG cross-section | AWG 32-28 | |
| Insulation diameter | 0,64-1,52 mm | |
| Contact connection | Crimpanschluss | |
| Contact material | Kupferlegierung | |
| Contact surface Connection range | verzinnt | |
| Contact surface mating area | verzinnt | |
| Cable cross-section | 0,03-0,09 mm² |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
