494034-2 | AMP

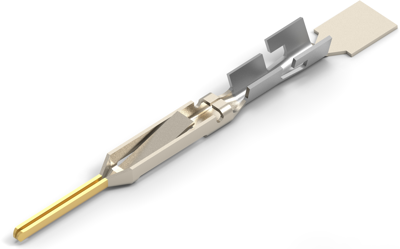

Pin contact, 0.2-0.4 mm², AWG 24-22, crimp connection, 494034-2
Order No.: 36P7901
EAN: 4099889647365
MPN:
494034-2
Unit Price (€ / pc.)
1.2376 € *
Available: 0 pcs.
Available in 5 Days: 271 pcs.
Leadtime: 1 Week **
Total Price:
1.24 € *
Price list
Quantity
Price per unit*
70 pcs.
1.2376 €
450 pcs.
0.9996 €
*incl. VAT plus shipping costs
**Subject to prior sale
FFC contact, 494034-2, TE Connectivity
Connector System: Cable-to-Cable, Sealable: No, Connector & Contact Terminates To: Wire & Cable, Compatible With Wire & Cable Type: Discrete Wire, Contact Base Material: Phosphor Bronze, Contact Type: Pin, Contact Mating Area Plating Material: Gold, Contact Current Rating (Max): 2 A, Termination Method to Wire & Cable: Insulation Displacement Crimp (IDC), Connector Mounting Type: Cable Mount (Free-Hanging), Centerline (Pitch): 2.54 mm, Accepts Conductor Width: 1.27 mm,1.82 mm, Wire Size: 24 - 22 AWG, Wire Size: 0.2 -0.4 mm², Accepts Wire Insulation Diameter Range: 1.02 - 1.42 mm, Operating Temperature Range: -65 - 105 °C.
Technical specifications
| Version | pin contact | |
| AWG cross-section | AWG 24-22 | |
| Insulation diameter | 1.02-1.42 mm | |
| Contact connection | crimp connection | |
| Contact material | phosphor bronze | |
| Contact surface Connection range | tin-plated | |
| Contact surface mating area | gold-plated | |
| Cable cross-section | 0.2-0.4 mm² |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85369040 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
