353907-1 | AMP
Receptacle, 0.08-0.2 mm², AWG 28-24, crimp connection, 353907-1
Order No.: 36P7013
EAN: 4099889647266
MPN:
353907-1
Unit Price (€ / pc.)
0.0464 € *
Available in 5 Days: 1,170,000 pcs. - if ordered today
Total Price:
0.05 € *
Price list
Quantity
Price per unit*
1 pcs.
0.0464 €
10 pcs.
0.0428 €
50 pcs.
0.0405 €
100 pcs.
0.0357 €
*incl. VAT plus shipping costs
Subject to prior sale

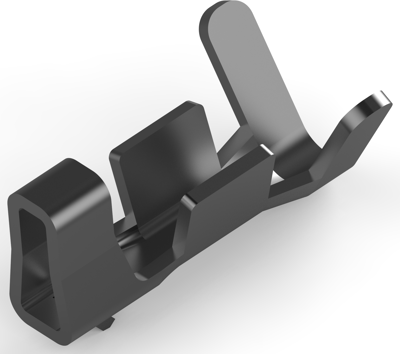

Wire-to-board connector contact, 353907-1, AMP
Connector System: Wire-to-Board,Wire-to-Panel,Wire-to-Wire, Sealable: No, Connector & Contact Terminates To: Wire & Cable, Compatible With Wire & Cable Type: Discrete Wire, Operating Voltage: 50 VAC, Contact Base Material: Phosphor Bronze, Contact Type: Socket, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 2 A, Termination Method to Wire & Cable: Crimp, Connector Mounting Type: Cable Mount (Free-Hanging), Accepts Wire Insulation Diameter Range: 0.85 - 1.05 mm, Wire Size: 28 - 24 AWG, Wire Size: 0.08 - 0.2 mm², Operating Temperature Range: -30 - 105 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | crimp connection | |
| Contact surface Connection range | tin-plated | |
| Version | receptacle | |
| Contact surface mating area | tin-plated | |
| Contact material | phosphor bronze | |
| Insulation diameter | 0.85-1.05 mm | |
| Cable cross-section | 0.08-0.2 mm² | |
| AWG cross-section | AWG 28-24 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | TH |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
