353537-2 | AMP

Tab, 0.3-0.5 mm², AWG 22-20, crimp connection, gold-plated, 353537-2

Order No.: 36P1769
EAN: 4099889642520
MPN:
353537-2
Series: Multilock
AMP
default L

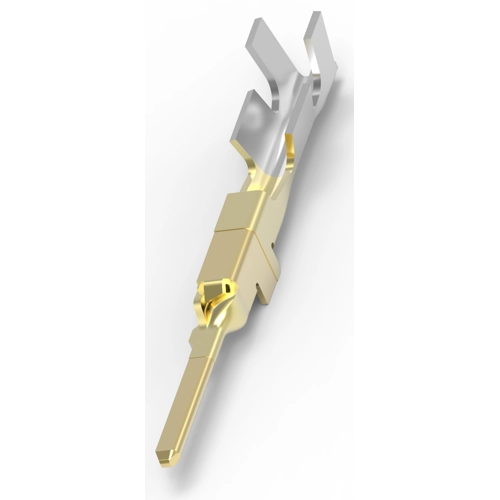

Image may differ
Unit Price (€ / pc.)
0.2451 € *
Available: 0 pcs.
Available in 5 Days: 419,962 pcs.
Leadtime: 1 Week **
Total Price:
0.25 € *
*incl. VAT plus shipping costs
**Subject to prior sale
5000 pcs.
0.2451 €

Contacts for motor vehicles, 353537-2, AMP

Sealable: No, Primary Locking Feature: Clean Body, Crimp Type: F-Crimp, Terminal & Splice Type: Tab, Mating Tab Width: 1 mm, Mating Tab Thickness: 0.64 mm, Automotive terminal Interface Plating: Gold (Au), Automotive terminal Termination Method: Crimp, Wire Size: 0.3 - 0.5 mm², Wire Size Search: 0.3 mm², 0.35 mm², 0.4 mm², 0.5 mm²,6 mm²,75 mm²,85 mm², Wire Size Search: 18 AWG,19 AWG,20 AWG,21 AWG, Wire Insulation Diameter: 1.4 - 1.7 mm, Operating Temperature Range: -40 - 105 °C.

Technical specifications
Version tab
AWG cross-section AWG 22-20
Insulation diameter 1.4-1.7 mm
Contact connection crimp connection
Contact material brass
Contact surface Connection range gold-plated
contact surface gold-plated
Cable cross-section 0.3-0.5 mm²
Logistics
Country of origin TH
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
