350838-1 | AMP
Receptacle, solder connection, tin-plated, 350838-1
Order No.: 39P2306
EAN: 4099889652291
MPN:
350838-1
Unit Price (€ / pc.)
1.1305 € *
Available in 5 Days: 1,121 pcs. - if ordered today
Total Price:
1.13 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1305 €
10 pcs.
1.0234 €
50 pcs.
0.9163 €
100 pcs.
0.8330 €
*incl. VAT plus shipping costs
Subject to prior sale

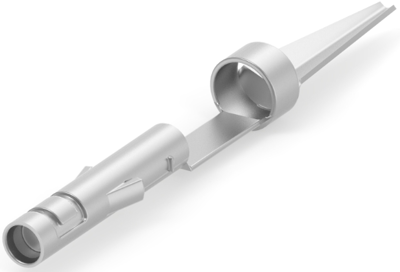

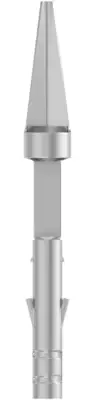

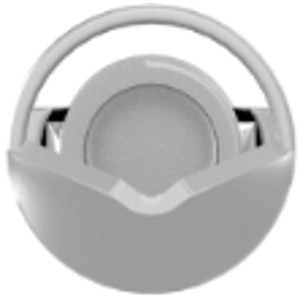

Socket contact, 350838-1, AMP
Power Contact Type: Contact, Connector System: Wire-to-Board, Sealable: No, Connector & Contact Terminates To: Wire & Cable, Number of Positions: 1, Operating Voltage: 250 VAC, Operating Voltage: 250 VDC, Contact Fabrication: Stamped & Formed, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 9 A, Contact Type: Socket, Contact Retention Within Housing: With, Termination Post & Tail Length: 8.38 mm, Termination Method to Printed Circuit Board: Through Hole - Solder, Wire Insulation Support: Without, Operating Temperature Range: -55 - 85 °C.
Technical specifications
| Contact surface mating area | tin-plated | |
| contact surface | tin-plated | |
| Contact surface Connection range | tin-plated | |
| Contact connection | solder connection | |
| Version | receptacle | |
| Contact material | phosphor bronze |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85369095 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
