350699-1 | AMP

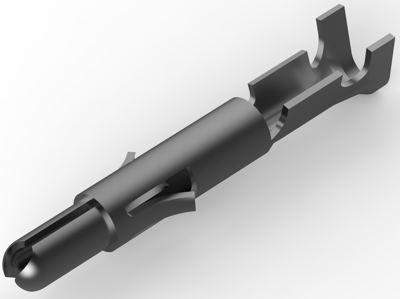

Pin contact, 0.2-0.8 mm², AWG 24-18, crimp connection, 350699-1
Unit Price (€ / pc.)
0.0857 € *
Available in 5 Days: 21,000 pcs. - if ordered today
Power contact, 350699-1, TE Connectivity
Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 600 VAC, Contact Shape & Form: Split, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 19 A, Contact Type: Pin, Contact Retention Within Housing: With, Termination Method to Wire & Cable: Crimp, Contact Retention Type Within Housing: Locking Lance, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 24 - 18 AWG, Wire Size: 0.2 -0.8 mm², Accepts Wire Insulation Diameter Range: 1.02 - 2.54 mm, Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin contact | |
| Contact surface Connection range | tin-plated | |
| AWG cross-section | AWG 24-18 | |
| Cable cross-section | 0.2-0.8 mm² | |
| Contact connection | crimp connection | |
| Contact material | brass | |
| Insulation diameter | 1.02-2.54 mm | |
| Contact surface mating area | tin-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | US |
| Original Packaging | Reel with 7,000 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
