350639-1 | AMP

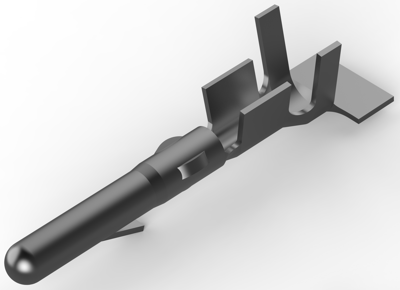

Pin contact, 0.8-1.31 mm², AWG 18-16, crimp connection, 350639-1
Unit Price (€ / pc.)
0.2904 € *
Available in 5 Days: 8,306 pcs. - if ordered today
Total Price:
1.45 € *
Price list
Quantity
Price per unit*
5 pcs.
0.2904 €
10 pcs.
0.2689 €
25 pcs.
0.2499 €
50 pcs.
0.2273 €
*incl. VAT plus shipping costs
Subject to prior sale
Power contact, 350639-1, AMP
Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 250 VAC, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 15 A, Contact Type: Pin, Contact Retention Within Housing: With, Mating Pin Diameter: 2.13 mm, Termination Method to Wire & Cable: Crimp, Contact Retention Type Within Housing: Locking Lance, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 18 - 16 AWG, Wire Size: 0.8 - 1.31 mm², Accepts Wire Insulation Diameter Range: 2.92 mm, Operating Temperature Range: -55 - 125 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact material | brass | |
| Contact surface mating area | tin-plated | |
| Cable cross-section | 0.8-1.31 mm² | |
| Version | pin contact | |
| AWG cross-section | AWG 18-16 | |
| Contact surface Connection range | tin-plated | |
| Contact connection | crimp connection | |
| Insulation diameter | 2.92 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
