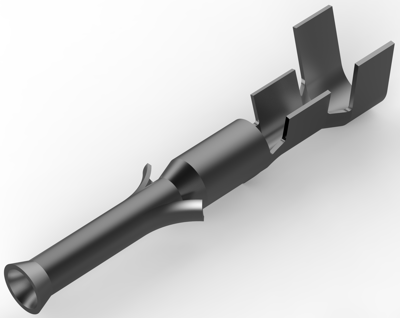

350628-2 | AMP
Receptacle, 0.2-0.82 mm², AWG 24-18, crimp connection, 350628-2
Order No.: 34P6836
EAN: 4099889635072
MPN:
350628-2
Unit Price (€ / pc.)
0.0690 € *
Standard delivery time from the manufacturer is: 41 Weeks
Total Price:
0.69 € *
Price list
Quantity
Price per unit*
10 pcs.
0.0690 €
50 pcs.
0.0643 €
100 pcs.
0.0595 €
250 pcs.
0.0536 €
*incl. VAT plus shipping costs
Subject to prior sale
Power contact, 350628-2, AMP
Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 250 VAC, Contact Fabrication: Stamped & Formed, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 9 A, Contact Type: Socket, Contact Retention Within Housing: With, Termination Method to Wire & Cable: Crimp, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 24 - 18 AWG, Wire Size: 0.2 - 0.82 mm², Accepts Wire Insulation Diameter Range: 1.27 - 2.79 mm, Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 24-18 | |
| Contact material | phosphor bronze | |
| Contact connection | crimp connection | |
| Version | receptacle | |
| Cable cross-section | 0.2-0.82 mm² | |
| Contact surface Connection range | tin-plated | |
| Contact surface mating area | tin-plated | |
| Insulation diameter | 1.27-2.79 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85389091 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
