350557-1 | AMP

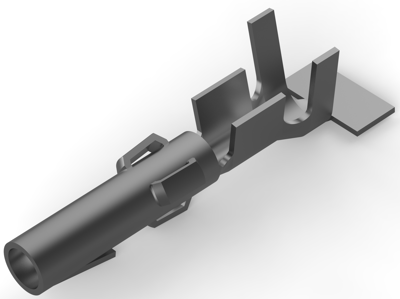

Receptacle, 0.8-0.9 mm², AWG 18-16, crimp connection, 350557-1
Unit Price (€ / pc.)
0.1119 € *
Standard delivery time from the manufacturer is: 19 Weeks
Total Price:
1.12 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1119 €
50 pcs.
0.1035 €
100 pcs.
0.0964 €
250 pcs.
0.0869 €
*incl. VAT plus shipping costs
Subject to prior sale
Power contact, 350557-1, AMP
Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 250 VAC, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 15 A, Contact Type: Socket, Contact Retention Within Housing: With, Mating Pin Diameter: 2.13 mm, Termination Method to Wire & Cable: Crimp, Contact Retention Type Within Housing: Locking Lance, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 16 AWG, 18 AWG, Wire Size: 0.8 - 0.9 mm², 1.25 - 1.4 mm², Accepts Wire Insulation Diameter Range: 2.92 mm, Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 18-16 | |
| Contact material | brass | |
| Contact connection | crimp connection | |
| Version | receptacle | |
| Cable cross-section | 0.8-0.9 mm² | |
| Contact surface Connection range | tin-plated | |
| Contact surface mating area | tin-plated | |
| Insulation diameter | 2.92 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
