350551-3 | AMP

Receptacle, 0.5-2.0 mm², AWG 20-14, crimp connection, tin-plated, 350551-3

Order No.: 71F632
EAN: 4099889662160
MPN:
350551-3
0-0350551-3
350551-3 AMP Crimp Contacts Image 1
350551-3 AMP Crimp Contacts Image 2
Image may differ
Unit Price (€ / pc.)
0.5117 € *
Available: 770 pcs.
Total Price:
0.51 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5117 €
10 pcs.
0.4046 €
100 pcs.
0.3451 €
500 pcs.
0.2773 €
1000 pcs.
0.2297 €
*incl. VAT plus shipping costs
Subject to prior sale

Female contact for general-purpose Mate-N-Lok connectors.

Contact material: phosphor bronze. Contact finish: tinned.

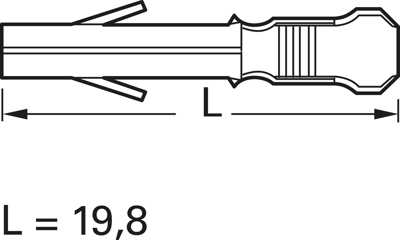

Technical attributes (type, for wire cross-section, insulation diameter, dimension L, contact finish): 0-0350551-3, 0.5 to 2.1mm²², 3.3 to 5.1 mm, L 19.8 mm, tinned

Technical specifications
Version receptacle
Cable cross-section 0.5-2.0 mm²
AWG cross-section AWG 20-14
Contact connection crimp connection
Contact material phosphor bronze
Contact surface mating area tin-plated
contact surface tin-plated
Contact surface Connection range tin-plated
Insulation diameter 3.3-5.08 mm
Logistics
Country of origin US
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
