350550-3 | AMP

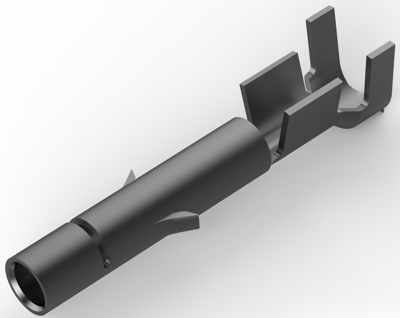

Receptacle, 0.5-2.0 mm², AWG 20-14, crimp connection, 350550-3
Unit Price (€ / pc.)
0.2999 € *
Available in 5 Days: 1,460 pcs. - if ordered today
Total Price:
1.50 € *
Price list
Quantity
Price per unit*
5 pcs.
0.2999 €
10 pcs.
0.2773 €
25 pcs.
0.2582 €
50 pcs.
0.2344 €
*incl. VAT plus shipping costs
Subject to prior sale
Power contact, 350550-3, TE Connectivity
Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 600 VAC, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 19 A, Contact Type: Socket, Contact Retention Within Housing: With, Mating Pin Diameter: 2.13 mm, Termination Method to Wire & Cable: Crimp, Contact Retention Type Within Housing: Locking Lance, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 20 - 14 AWG, Wire Size: 0.5 - 2 mm², Accepts Wire Insulation Diameter Range: 1.52 - 3.3 mm, Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact surface mating area | tin-plated | |
| AWG cross-section | AWG 20-14 | |
| Version | receptacle | |
| Contact connection | crimp connection | |
| Contact surface Connection range | tin-plated | |
| Cable cross-section | 0.5-2.0 mm² | |
| Insulation diameter | 1.52-3.3 mm | |
| Contact material | phosphor bronze |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
