350418-1 | AMP

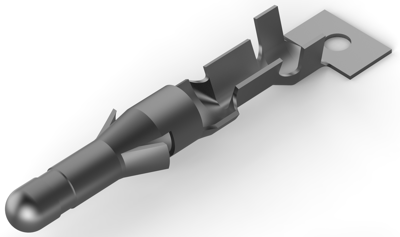

Pin contact, 0.3-0.84 mm², AWG 24-18, crimp connection, 350418-1
Order No.: 34P6848
EAN: 4099889635171
MPN:
350418-1
Unit Price (€ / pc.)
0.0524 € *
Available in 5 Days: 40,000 pcs. - if ordered today
Power contact, 350418-1, TE Connectivity
Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 250 VAC, 600 VAC, Contact Mating Area Plating Material: Tin, Contact Current Rating (Max): 13 A, Contact Type: Pin, Contact Retention Within Housing: With, Mating Pin Diameter: 2.36 mm, Termination Method to Wire & Cable: Crimp, Contact Retention Type Within Housing: Locking Lance, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 24 - 18 AWG, Wire Size: 0.3 -0.84 mm², Accepts Wire Insulation Diameter Range: 2.79 mm, Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact surface Connection range | tin-plated | |
| Insulation diameter | 2.79 mm | |
| Contact material | brass | |
| Contact connection | crimp connection | |
| Version | pin contact | |
| Cable cross-section | 0.3-0.84 mm² | |
| AWG cross-section | AWG 24-18 | |
| Contact surface mating area | tin-plated |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
