316041-2 | AMP

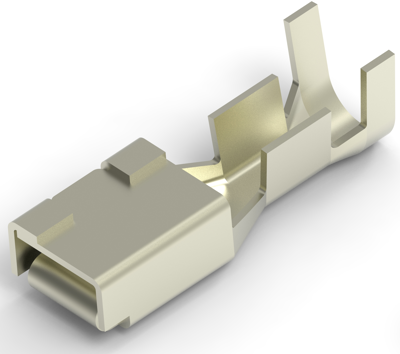

Receptacle, 3.08-5.5 mm², AWG 12-10, crimp connection, 316041-2
Unit Price (€ / pc.)
2.7965 € *
Available: 0 pcs.
Available in 5 Days: 1,047 pcs.
Leadtime: 23 Weeks **
Total Price:
2.80 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7965 €
10 pcs.
2.5823 €
50 pcs.
2.3205 €
100 pcs.
2.0825 €
*incl. VAT plus shipping costs
**Subject to prior sale
Wire-to-board connector contact, 316041-2, AMP
Connector System: Component-to-Wire, Connector & Contact Terminates To: Wire & Cable, Mating Tab Thickness: 1 mm, Contact Type: Receptacle, Contact Mating Area Plating Material: Gold, Contact Current Rating (Max): 30 A, Wire Size: 12 - 10 AWG, Wire Size: 3.08 - 5.5 mm², Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Contact surface mating area | gold-plated | |
| AWG cross-section | AWG 12-10 | |
| Contact connection | crimp connection | |
| Cable cross-section | 3.08-5.5 mm² | |
| Version | receptacle | |
| Contact material | copper alloy | |
| Insulation diameter | 4-5.2 mm |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
