3-66104-0 | AMP
Receptacle, 0.2-0.6 mm², AWG 24-20, crimp connection, 3-66104-0
Unit Price (€ / pc.)
0.7497 € *
Available in 5 Days: 20,000 pcs. - if ordered today
Total Price:
2,998.80 € *
Price list
Quantity
Price per unit*
4000 pcs.
0.7497 €
8000 pcs.
0.7140 €
*incl. VAT plus shipping costs
Subject to prior sale

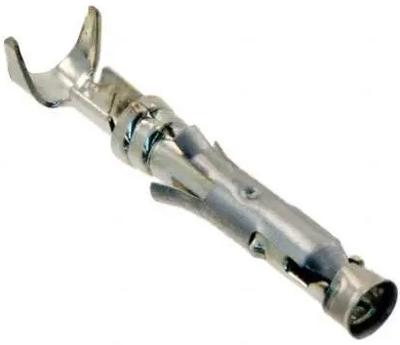

Socket contact, 3-66104-0, AMP
Power Contact Type: Contact, Connector & Contact Terminates To: Wire & Cable, Test Current: 13 A, Contact Mating Area Plating Material: Tin, Contact Current Rating (Max): 13 A, Contact Type: Socket, Contact Retention Within Housing: With, Mating Pin Diameter: 1.57 mm, Termination Method to Wire & Cable: Crimp, Wire Insulation Support: With, Wire Size: 24 - 20 AWG, Wire Size: 0.2 - 0.6 mm², Accepts Wire Insulation Diameter Range: 1.02 - 2.03 mm, Operating Temperature Range: -55 - 90 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 24-20 | |
| Contact material | brass | |
| Cable cross-section | 0.2-0.6 mm² | |
| Insulation diameter | 1.02-2.03 mm | |
| Contact surface mating area | tin-plated | |
| Version | receptacle | |
| Contact connection | crimp connection | |
| Contact surface Connection range | tin-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | TW |
| Original Packaging | Reel with 4,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
