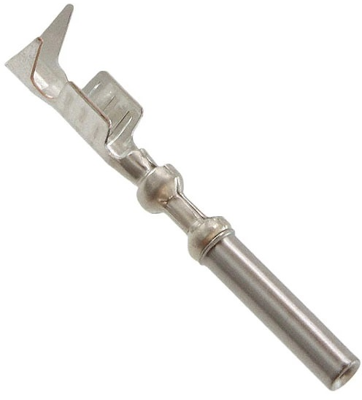

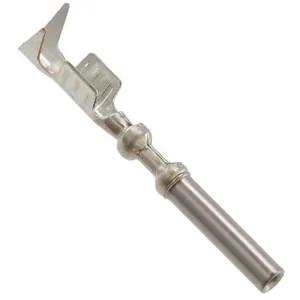

3-1447221-3 | AMP
Receptacle, 0.75-1.25 mm², AWG 18-16, crimp connection, gold-plated, 3-1447221-3
Unit Price (€ / pc.)
0.6426 € *
Available: 1,618 pcs.
Total Price:
0.64 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6426 €
10 pcs.
0.4879 €
100 pcs.
0.4165 €
500 pcs.
0.3451 €
1000 pcs.
0.2999 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket contact, 3-1447221-3, TE Connectivity
Receptacle Style: 180°, Sealable: Yes, Primary Locking Feature: Clean Body, Wire Type: Copper, Seal Type: Family Seal, Crimp Type: F-Crimp, Terminal & Splice Type: Socket, Mating Pin Diameter: 1 mm, Interface Plating: Gold (Au), Contact Termination Area Plating Material: Tin (Sn), Termination Method: Crimp, Wire Size: 18 - 16 AWG, Wire Size: 00.75 - 1.25 mm², Wire Size Search: 16 AWG, 17 AWG, 18 AWG, Wire Size Search: 0.75 mm², 0.85 mm², 1 mm², 1.25 mm², Wire Insulation Diameter: 1.6 - 2.2 mm, Operating Temperature Range: -30 - 130 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contact surface | gold-plated | |
| AWG cross-section | AWG 18-16 | |
| Contact surface Connection range | tin-plated | |
| Contact connection | crimp connection | |
| Cable cross-section | 0.75-1.25 mm² | |
| Version | receptacle | |
| Contact material | copper alloy | |
| Insulation diameter | 1.6-2.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85366990 |
| Original Packaging | Reel with 7,000 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
