282466-1 | AMP
Receptacle, 1.5-2.5 mm², AWG 15-13, crimp connection, tin-plated, 282466-1
Unit Price (€ / pc.)
0.1392 € *
Available: 3,950 pcs.
Total Price:
13.92 € *
Price list
Quantity
Price per unit*
100 pcs.
0.1392 €
250 pcs.
0.1285 €
500 pcs.
0.1190 €
1000 pcs.
0.1071 €
*incl. VAT plus shipping costs
Subject to prior sale

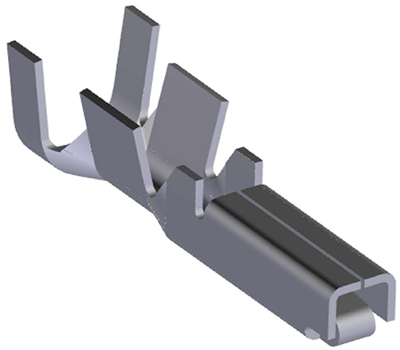

Socket contact, 282466-1, TE Connectivity
Receptacle Style: 180°, Sealable: Yes, Primary Locking Feature: Clean Body, Wire Type: Copper, Seal Type: Single Wire Seal (SWS), Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 1.5 mm, Mating Tab Thickness: 0.8 mm, Interface Plating: Tin (Sn), Termination Method: Crimp, Wire Size: 1.5 - 2.5 mm², Wire Size Search: 14 AWG, 15 AWG, 16 AWG, Wire Size Search: 1.5 mm², 2 mm², 2.5 mm², Wire Insulation Diameter: 2.2 - 2.4 mm, Operating Temperature Range: -40 - 125 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 15-13 | |
| contact surface | tin-plated | |
| Version | receptacle | |
| Contact connection | crimp connection | |
| Contact surface Connection range | tin-plated | |
| Cable cross-section | 1.5-2.5 mm² | |
| Insulation diameter | 2.2-2.4 mm | |
| Contact material | phosphor bronze |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
| Original Packaging | Reel with 4,000 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
