282109-1 | AMP

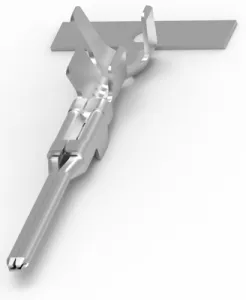

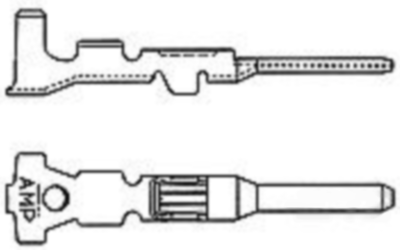

Pin contact, 0.75-1.5 mm², AWG 18-15, crimp connection, tin-plated, 282109-1
Unit Price (€ / pc.)
0.1190 € *
Available: 2,938 pcs.
Available in 5 Days: 60,000 pcs. - if ordered today
Total Price:
11.90 € *
Price list
Quantity
Price per unit*
100 pcs.
0.1190 €
250 pcs.
0.1095 €
500 pcs.
0.1023 €
1000 pcs.
0.0916 €
*incl. VAT plus shipping costs
Subject to prior sale
Tab contact, 282109-1, AMP
Sealable: Yes, Primary Locking Feature: Clean Body, Terminal Seal Type: Single Wire Seal (SWS), Crimp Type: F-Crimp, Terminal Type: Tab, Mating Tab Width: 1.5 mm, Mating Tab Thickness: 0.8 mm, Interface Plating: Tin (Sn), Termination Method to Wire & Cable: Crimp, Product Terminates To: Wire, Wire Size: 18 - 15 AWG, Wire Size: 0.75 - 1.5 mm², Wire Size Search: 0.75 mm², 1 mm², 1.25 mm², 1.5 mm², Wire Size Search: 15 AWG, 16 AWG, 17 AWG, 18 AWG, Wire Insulation Diameter: 1.7 - 2.4 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 - 125 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 18-15 | |
| contact surface | tin-plated | |
| Version | pin contact | |
| Contact connection | crimp connection | |
| Contact surface Connection range | tin-plated | |
| Cable cross-section | 0.75-1.5 mm² | |
| Insulation diameter | 1.7-2.4 mm | |
| Contact material | brass |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
| Original Packaging | Reel with 4,000 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
