280530-3 | AMP

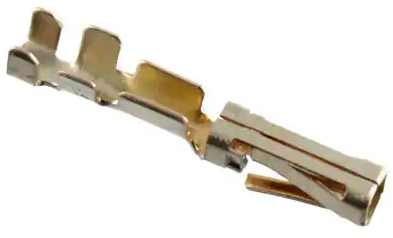

Receptacle, 0.12-0.4 mm², AWG 26-22, crimp connection, 280530-3
Unit Price (€ / pc.)
0.1987 € *
Available: 0 pcs.
Available in 5 Days: 20,000 pcs.
Leadtime: 14 Weeks **
Total Price:
3,974.60 € *
Price list
Quantity
Price per unit*
20000 pcs.
0.1987 €
40000 pcs.
0.1904 €
*incl. VAT plus shipping costs
**Subject to prior sale
Wire-to-board connector contact, 280530-3, TE Connectivity
Applied Pressure: Standard, Connector System: Wire-to-Board, Connector & Contact Terminates To: Wire & Cable, Compatible With Wire & Cable Type: Discrete Wire, Contact Base Material: Phosphor Bronze, Contact Type: Socket, Contact Mating Area Plating Material: Gold, Contact Current Rating (Max): 3 A, Termination Method to Wire & Cable: Crimp, Wire Insulation Support: With, Connector Mounting Type: Cable Mount (Free-Hanging), Accepts Wire Insulation Diameter Range: 0.89 - 1.55 mm, Wire Size: 26 - 22 AWG, Wire Size: 254.1 - 642.5 CMA, Wire Size: 0.12 - 0.4 mm², Operating Temperature Range: -40 - 80 °C.
Technical specifications
| Version | Buchsenkontakt | |
| AWG cross-section | AWG 26-22 | |
| Insulation diameter | 0,89-1,55 mm | |
| Contact connection | Crimpanschluss | |
| Contact material | Phosphorbronze | |
| Contact surface mating area | vergoldet | |
| Cable cross-section | 0,12-0,4 mm² |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85369040 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
