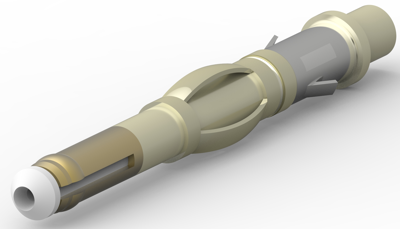

226537-1 | AMP
Pin contact, AWG 26, crimp connection, gold-plated, 226537-1
Order No.: 37P2100
EAN: 4099889648737
MPN:
226537-1
Unit Price (€ / pc.)
15.5652 € *
Available: 0 pcs.
Leadtime: 29 Weeks **
Total Price:
15.57 € *
Price list
Quantity
Price per unit*
1 pcs.
15.5652 €
10 pcs.
14.3276 €
50 pcs.
12.8877 €
100 pcs.
11.6025 €
*incl. VAT plus shipping costs
**Subject to prior sale
Coax contact, 226537-1, AMP
Connector Type: Coaxial contact, Connector System: Cable-to-Cable, Sealable: No, Connector & Contact Terminates To: Wire & Cable, Compatible With RF Cable Type: RD 316, RG 161, RG 174, RG 174DB, RG 179, RG 179A, RG 179B, RG 187, RG 187A, RG 187DB, RG 188, RG 188A, RG 316, PCB Mount Orientation: Straight, Impedance Options: Non-Matched, Outer Shell Material: Brass, Body Angle: Straight, RF Connector Center Contact Material: Beryllium Copper, Contact Type: Pin, RF Connector Center Contact Plating Material: Gold, Contact Mating Retention: Without, Connector Mounting Type: Cable Mount (Free-Hanging). & Signal, Packaging Method: Carton, Dielectric Material: TPX
Technical specifications
| Version | Stiftkontakt | |
| AWG cross-section | AWG 26 | |
| Contact connection | Crimpanschluss | |
| Contact material | Messing | |
| contact surface | vergoldet |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
