2141824-1 | AMP

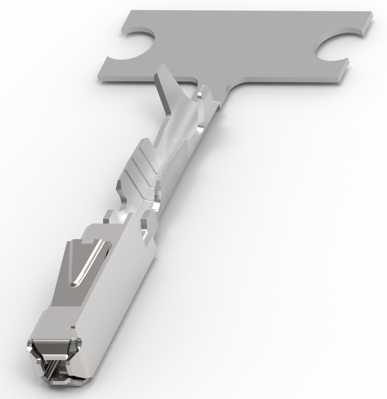

Receptacle, 0.13-0.17 mm², AWG 26-25, crimp connection, tin-plated, 2141824-1
Order No.: 36P1385
EAN: 4099889642308
MPN:
2141824-1
Unit Price (€ / pc.)
0.0309 € *
Standard delivery time from the manufacturer is: 30 Weeks
Socket contact, 2141824-1, AMP
Receptacle Style: 180°, Sealable: No, Primary Locking Feature: Locking Lance, Crimp Type: F-Crimp, Terminal Type: Receptacle, Mating Tab Width: 0.63 mm, Mating Tab Thickness: 0.63 mm, Interface Plating: Tin (Sn), Termination Method to Wire & Cable: Crimp, Product Terminates To: Wire, Wire Size: 26 - 25 AWG, Wire Size: 0.13 - 0.17 mm², Wire Size Search: 0.13 mm², 0.15 mm², Wire Size Search: 25 AWG, 26 AWG, Wire Insulation Diameter: 0.85 - 1 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 - 120 °C, Compatible With Wire Base Material: Copper.
Technical specifications
| contact surface | tin-plated | |
| AWG cross-section | AWG 26-25 | |
| Contact surface Connection range | tin-plated | |
| Contact connection | crimp connection | |
| Cable cross-section | 0.13-0.17 mm² | |
| Version | receptacle | |
| Contact material | copper-nickel alloy | |
| Insulation diameter | 0.85-1 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369095 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
