213843-3 | AMP

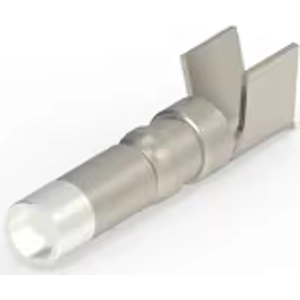

Receptacle, 5.0-8.0 mm², AWG 10-8, crimp connection, 213843-3
Unit Price (€ / pc.)
13.2923 € *
Available in 5 Days: 750 pcs. - if ordered today
Power contact, 213843-3, TE Connectivity
Power contact Type: Contact, Connector System: Wire-to-Wire, Sealable: No, Connector & Contact Terminates To: Wire & Cable, Number of Positions: 1, Test Current: 50 A, Operating Voltage: 600 VAC, Operating Voltage: 600 VDC, Contact Mating Area Plating Material: Silver, Contact Current Rating (Max): 50 A, Contact Type: Socket, Contact Retention Within Housing: With, Mating Pin Diameter: 3.18 mm, Termination Method to Wire & Cable: Crimp, Wire Insulation Support: Without, Wire Size: 10 - 8 AWG, Wire Size: 5 - 8 mm², Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 10-8 | |
| Contact material | copper | |
| Cable cross-section | 5.0-8.0 mm² | |
| Contact surface mating area | silver-plated | |
| Version | receptacle | |
| Contact connection | crimp connection | |
| Contact surface Connection range | silver-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | JP |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
