204370-2 | AMP

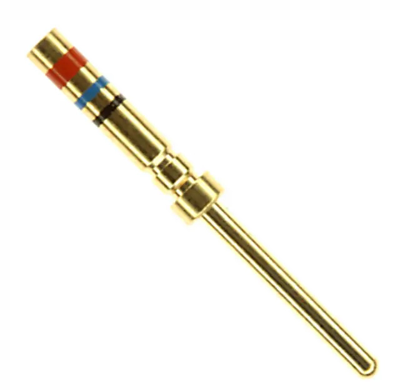

Pin contact, 0.08-0.4 mm², AWG 28-22, crimp connection, gold-plated, 204370-2
Unit Price (€ / pc.)
0.7140 € *
Available in 5 Days: 37,992 pcs. - if ordered today
Total Price:
0.71 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7140 €
10 pcs.
0.6545 €
25 pcs.
0.6188 €
50 pcs.
0.5593 €
*incl. VAT plus shipping costs
Subject to prior sale
Pin contact, 204370-2, AMP
Product Type: Contact, Connector & Contact Terminates To: Wire & Cable, Color Code: Yes, Contact Underplating Material: Nickel, Contact Type: Pin, D-Sub Contact Size: 22, Contact Base Material: Copper Alloy, Contact Mating Area Plating Material: Gold, Termination Post Length: .17 mm, Termination Method to Wire & Cable: Crimp, Post Diameter: 0.03 mm, Wire Size: 28 - 22 AWG, Wire Size: 0.08 - 0.4 mm², Operating Temperature Range: -55 - 125 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 28-22 | |
| Contact material | copper alloy | |
| Contact connection | crimp connection | |
| contact surface | gold-plated | |
| Version | pin contact | |
| Cable cross-section | 0.08-0.4 mm² | |
| Contact surface mating area | gold-plated | |
| Insulation diameter | 0.05 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
