202418-1 | AMP

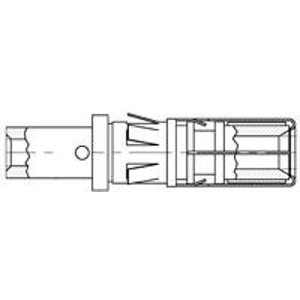

Receptacle, 0.8-1.4 mm², AWG 18-16, crimp connection, 202418-1
Unit Price (€ / pc.)
21.1225 € *
Standard delivery time from the manufacturer is: 21 Weeks
Power contact, 202418-1, AMP
Power contact Type: Contact, Connector System: Wire-to-Wire, Sealable: No, Connector & Contact Terminates To: Wire & Cable, Number of Positions: 1, Test Current: 23 A, Contact Mating Area Plating Material: Gold, Contact Current Rating (Max): 23 A, Contact Type: Socket, Contact Retention Within Housing: With, Mating Pin Diameter: 3.56 mm, Termination Method to Wire & Cable: Crimp, Contact Retention Type Within Housing: Snap-In, Wire Insulation Support: Without, Wire Size: 18 - 16 AWG, Wire Size: 0.8 - 1.4 mm², Circuit Application: Power, Packaging Method: Bag, Packaging Quantity: 100, For Use With: CR ZIF Connectors, G Series Connectors, M Series Connectors
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 18-16 | |
| Contact material | brass | |
| Cable cross-section | 0.8-1.4 mm² | |
| Contact surface mating area | gold-plated | |
| Version | receptacle | |
| Contact connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
