2-487406-4 | AMP

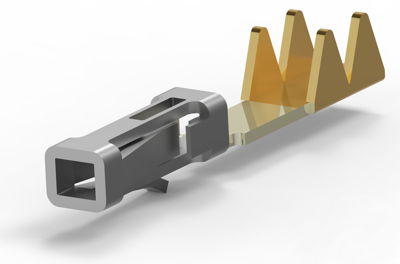

Receptacle, crimp connection, tin-plated, 2-487406-4
Unit Price (€ / pc.)
0.1464 € *
Available: 0 pcs.
Available in 5 Days: 14,000 pcs.
Leadtime: 13 Weeks **
Total Price:
2,049.18 € *
*incl. VAT plus shipping costs
**Subject to prior sale
14000 pcs.
0.1464 €
FFC contact, 2-487406-4, TE Connectivity
Connector System: Cable-to-Cable, Sealable: No, Connector & Contact Terminates To: Wire & Cable, Compatible With Wire & Cable Type: FFC, Contact Base Material: Phosphor Bronze, Contact Type: Socket, Contact Mating Area Plating Material: Tin, Contact Current Rating (Max): 2 A, Termination Method to Wire & Cable: Insulation Displacement Crimp (IDC), Connector Mounting Type: Cable Mount (Free-Hanging), Centerline (Pitch): 2.54 mm, Accepts Conductor Width: 1.27 mm, Operating Temperature Range: -65 - 105 °C.
Technical specifications
| Version | Buchsenkontakt | |
| Contact connection | Crimpanschluss | |
| Contact material | Phosphorbronze | |
| Contact surface mating area | verzinnt | |
| contact surface | verzinnt |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
