2-330854-5 | AMP

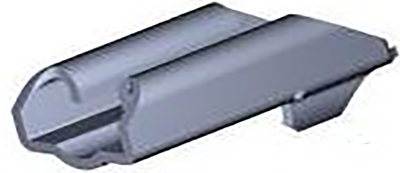

Receptacle, 0.5-0.6 mm², AWG 20, crimp connection, 2-330854-5
Order No.: 34P2835
EAN: 4099889633573
MPN:
2-330854-5
Unit Price (€ / pc.)
1.2376 € *
Available: 200 pcs.
Available in 5 Days: 26,500 pcs. - if ordered today
Total Price:
1.24 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2376 €
10 pcs.
1.1424 €
25 pcs.
1.0710 €
50 pcs.
0.9758 €
*incl. VAT plus shipping costs
Subject to prior sale
Power contact, 2-330854-5, AMP
Power contact Type: Termination Point Clip, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Contact Mating Area Plating Material: Tin, Contact Type: Socket, Mating Tab Width: 2.36 mm, Mating Tab Thickness: 0.79 mm, Contact Base Material: Phosphor Bronze, Termination Method to Wire & Cable: Crimp, Wire Insulation Support: With, Wire Size: 20 AWG, Wire Size: 0.5 - 0.6 mm².
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 20 | |
| Contact material | phosphor bronze | |
| Cable cross-section | 0.5-0.6 mm² | |
| Contact surface mating area | tin-plated | |
| Version | receptacle | |
| Contact connection | crimp connection | |
| Contact surface Connection range | tin-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | GB |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
