188744-1 | AMP

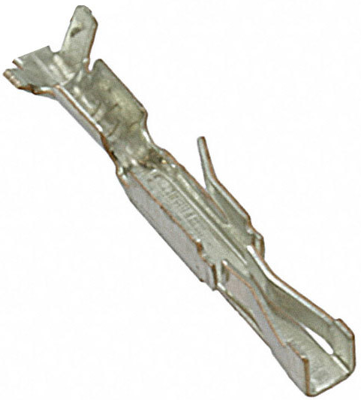

Receptacle, 0.08-0.24 mm², AWG 28-24, crimp connection, tin-plated, 188744-1
Unit Price (€ / pc.)
0.1131 € *
Available: 0 pcs.
Available in 5 Days: 58,800 pcs.
Leadtime: 19 Weeks **
Total Price:
2,261.00 € *
*incl. VAT plus shipping costs
**Subject to prior sale
20000 pcs.
0.1131 €
Socket contact, 188744-1, AMP
Connector System: Wire-to-Board, Sealable: No, Connector & Contact Terminates To: Wire & Cable, Compatible With Wire & Cable Type: Discrete Wire, Number of Positions: 1, Contact Base Material: Phosphor Bronze, Contact Type: Socket, Contact Mating Area Plating Material: Tin, Contact Current Rating (Max): 3 A, Termination Method to Wire & Cable: Insulation Displacement (IDC), Connector Mounting Type: Cable Mount (Free-Hanging), Centerline (Pitch): 2.54 mm, Accepts Wire Insulation Diameter Range: 0.8 - 1.5 mm, Wire Size: 28 - 24 AWG, Wire Size: 160 - 404 CMA, Wire Size: 0.08 - 0.24 mm², Operating Temperature Range: -40 - 100 °C.
Technical specifications
| Version | Buchsenkontakt | |
| Cable cross-section | 0,08-0,24 mm² | |
| AWG cross-section | AWG 28-24 | |
| Contact connection | Crimpanschluss | |
| Contact material | Phosphorbronze | |
| Contact surface mating area | verzinnt | |
| contact surface | verzinnt | |
| Contact surface Connection range | verzinnt | |
| Insulation diameter | 0,8-1,5 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
| Original Packaging | Rolle mit 20.000 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
