185028-1 | AMP

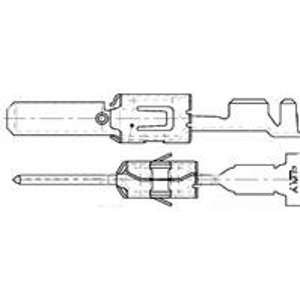

Tab, 0.35-1.0 mm², AWG 22-17, crimp connection, tin-plated, 185028-1
Order No.: 36P3400
EAN: 4099889644845
MPN:
185028-1
Unit Price (€ / pc.)
0.2523 € *
Available: 0 pcs.
Leadtime: 35 Weeks **
Total Price:
2,648.94 € *
*incl. VAT plus shipping costs
**Subject to prior sale
10500 pcs.
0.2523 €
Flat connector, 185028-1, TE Connectivity
Sealable: Yes, Primary Locking Feature: Locking Lance, Crimp Type: F-Crimp, Terminal & Splice Type: Tab, Mating Tab Width: 2.8 mm, Mating Tab Thickness: 0.8 mm, Interface Plating: Tin (Sn), Termination Method: Crimp, Wire Size: 0.35 - 1 mm², Wire Size Search: 17 AWG, 18 AWG, 19 AWG, 20 AWG, 21 AWG, Wire Size Search: 0.35 mm², 0.4 mm², 0.5 mm², 0.6 mm², 0.75 mm², 0.85 mm², 1 mm², Wire Insulation Diameter: 3.4 mm, Operating Temperature Range: -40 - 100 °C.
Technical specifications
| Version | Flachstecker | |
| AWG cross-section | AWG 22-17 | |
| Insulation diameter | 3,4 mm | |
| Contact connection | Crimpanschluss | |
| Contact material | Phosphorbronze | |
| Contact surface Connection range | verzinnt | |
| contact surface | verzinnt | |
| Cable cross-section | 0,35-1,0 mm² |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
