184030-1 | AMP

Receptacle, 0.5-2.0 mm², AWG 20-14, crimp connection, gold-plated, 184030-1

Order No.: 71F690

EAN: 4099889662467

MPN:

184030-1

0-0184030-1

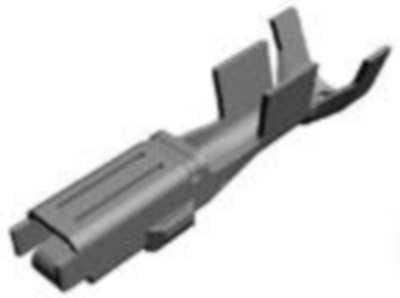

Image may differ

Key Specification:

Version receptacle

Cable cross-section 0.5-2.0 mm²

AWG cross-section AWG 20-14

Contact connection crimp connection

Contact material phosphor bronze

Ordering Information:

Supplied on a roll of 6000 contacts

Download Datasheet Technical specifications

As a private customer, you can buy this item as soon as we have it back in stock.

Description

Contacts for motor vehicles, 184030-1, AMP

Receptacle Style: 180°, Sealable: Yes, Automotive terminal Wire Type: Copper, Automotive terminal Seal Type: Single Wire Seal (SWS), Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 1.8 mm, Automotive terminal Interface Plating: Gold (Au), Contact Termination Area Plating Material: Gold (Au), Automotive terminal Termination Method: Crimp, Wire Size: 0.5 - 2 mm², Wire Size Search: 0.5 mm², 0.6 mm², 0.75 mm², 0.85 mm², 1 mm², 1.25 mm², 1.3 mm², 1.5 mm², 2 mm², Wire Size Search: 14 AWG, 15 AWG, 16 AWG, 17 AWG, 18 AWG, 19 AWG, 20 AWG, Wire Insulation Diameter: 1.2 - 2.7 mm, Operating Temperature Range: -40 - 150 °C.

Technical specifications

Filter	Property	Value
	Version	receptacle
	Cable cross-section	0.5-2.0 mm²
	AWG cross-section	AWG 20-14
	Contact connection	crimp connection
	Contact material	phosphor bronze
	contact surface	gold-plated
	Contact surface Connection range	gold-plated
	Insulation diameter	1.2-2.7 mm
