183036-1 | AMP
Pin contact, 0.35-0.5 mm², AWG 22-20, crimp connection, tin-plated, 183036-1
Unit Price (€ / pc.)
0.2975 € *
Available: 2,702 pcs.
Next delivery: 1,363 pcs. on 2025-12-24
Available in 5 Days: 85,178 pcs. - if ordered today
Total Price:
1.49 € *
Price list
Quantity
Price per unit*
5 pcs.
0.2975 €
10 pcs.
0.2618 €
50 pcs.
0.2499 €
100 pcs.
0.2380 €
*incl. VAT plus shipping costs
Subject to prior sale

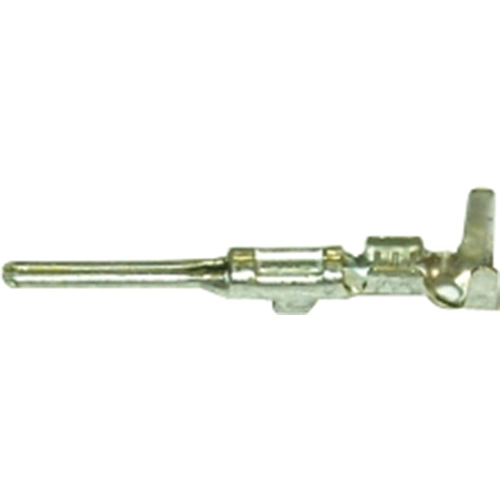

Pin contact, snap-in, type 1830.
Contact material: CuZn. Contact finish: tinned/gold-plated.
Technical attributes (type, conductor diameter, cable diameter): 183036 -1, 0.35 to 0.5 mm², 1.2 to 1.6 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | crimp connection | |
| contact surface | tin-plated | |
| AWG cross-section | AWG 22-20 | |
| Contact surface Connection range | tin-plated | |
| Contact material | brass | |
| Insulation diameter | 1.2-1.6 mm | |
| Version | pin contact | |
| Cable cross-section | 0.35-0.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
