182734-3 | AMP

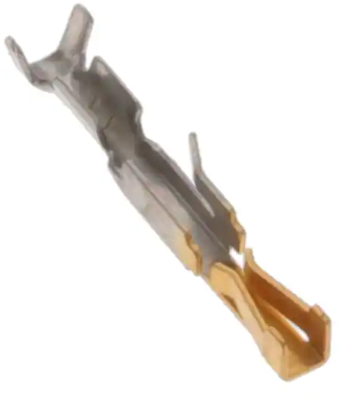

Receptacle, 0.08-0.24 mm², AWG 28-24, crimp connection, 182734-3
Unit Price (€ / pc.)
1.2138 € *
Standard delivery time from the manufacturer is: 37 Weeks
Total Price:
1.21 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2138 €
10 pcs.
1.1305 €
25 pcs.
1.0472 €
50 pcs.
0.9520 €
*incl. VAT plus shipping costs
Subject to prior sale
Wire-to-board connector contact, 182734-3, TE Connectivity
Connector System: Wire-to-Board, Sealable: No, Connector & Contact Terminates To: Wire & Cable, Compatible With Wire & Cable Type: Discrete Wire, Number of Positions: 1, Contact Base Material: Phosphor Bronze, Contact Type: Socket, Contact Mating Area Plating Material: Gold, Contact Current Rating (Max): 3 A, Termination Method to Wire & Cable: Insulation Displacement Crimp (IDC), Connector Mounting Type: Cable Mount (Free-Hanging), Centerline (Pitch): 2.54 mm, Accepts Wire Insulation Diameter Range: 0.8 - 1.5 mm, Wire Size: 28 - 24 AWG, Wire Size: 160 - 404 CMA, Wire Size: 0.08 - 0.24 mm², Operating Temperature Range: -55 - 125 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 28-24 | |
| Contact material | phosphor bronze | |
| Cable cross-section | 0.08-0.24 mm² | |
| Insulation diameter | 0.8-1.5 mm | |
| Contact surface mating area | gold-plated | |
| Version | receptacle | |
| Contact connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
