181299-2 | AMP

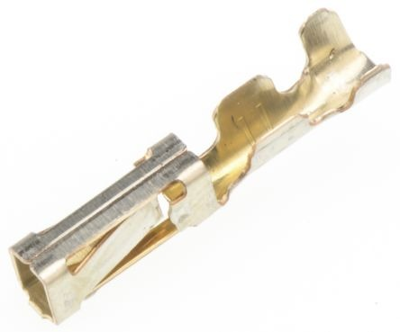

Receptacle, 0.3-0.9 mm², AWG 22-18, crimp connection, gold-plated, 181299-2
Unit Price (€ / pc.)
0.9996 € *
Available: 0 pcs.
Available in 5 Days: 199 pcs.
Leadtime: 18 Weeks **
Total Price:
1.00 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9996 €
10 pcs.
0.9044 €
50 pcs.
0.8092 €
100 pcs.
0.7259 €
*incl. VAT plus shipping costs
**Subject to prior sale
Socket contact, 181299-2, AMP
Applied Pressure: Standard, Connector System: Board-to-Board, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 40 VAC, Contact Base Material: Phosphor Bronze, Contact Type: Socket, Contact Mating Area Plating Material: Gold, Contact Orientation: Straight, Contact Current Rating (Max): 5 A, Termination Method to Wire & Cable: Crimp, PCB Mount Retention: Without, Connector Mounting Type: Board Mount, Mating Entry Location: Top, Centerline (Pitch): 3.81 mm, Accepts Wire Insulation Diameter Range: 1.8 - 2.3 mm, Wire Size: 22 - 18 AWG, Wire Size: 0.3 - 0.9 mm², Operating Temperature Range: -40 - 105 °C.
Technical specifications
| Version | Buchsenkontakt | |
| Cable cross-section | 0,3-0,9 mm² | |
| AWG cross-section | AWG 22-18 | |
| Contact connection | Crimpanschluss | |
| Contact material | Phosphorbronze | |
| Contact surface mating area | vergoldet | |
| contact surface | vergoldet | |
| Contact surface Connection range | vergoldet | |
| Insulation diameter | 1,8-2,3 mm |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
